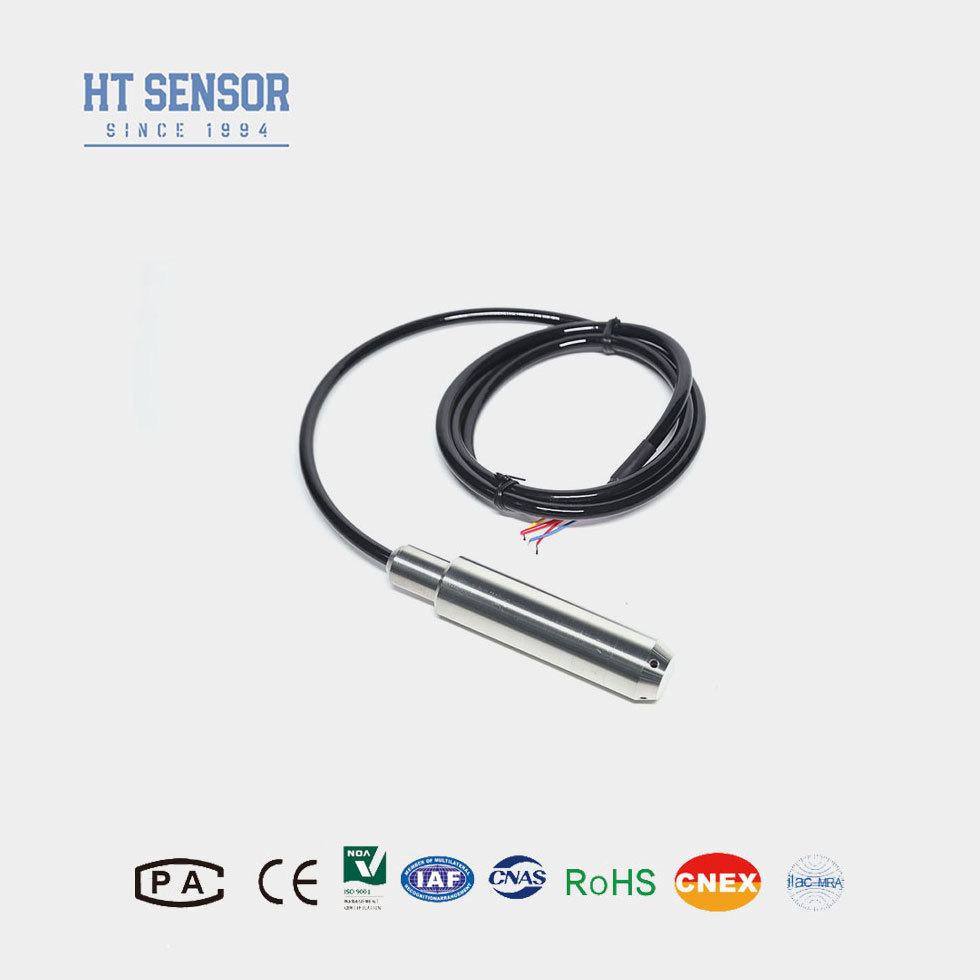

HT Series Water Level Transmitter with 4-20mA Output and Fully Welded Stainless Steel Housing and Thread
Product Details
| 모델 번호.: | BH93420-IT | 압력 범위: | 게이지 압력, 절대 압력 |
|---|---|---|---|
| 정확도 등급: | 00.25%,00.5% | IP 등급: | IP68 |
| 순 중량: | 0.3kg | 다이어프램 재료: | 316L 스테인리스 스틸 |
| 케이블 재료: | PE, PU, PTFE | 측정 범위: | 0 ~ 10m… 400m |
| 초과 적재: | ≤ 2x 등급 범위 | 작동 온도: | -20~80oC |
| 저장 온도: | -30 ~ 100ºC | 주택 자료: | 1CR18NI9TI, 316L 스테인리스 스틸 |
| 절연 저항: | > = 100mΩ@100vdc | 방폭 등급: | ExiaIICT6 |
| 출력 신호: | 4 ~ 20MA, 0 ~ 10/20MA, 0/1 ~ 5V, 0/1 ~ 10V, 0.5 ~ 4.5V | ||
| 강조하다 |
4-20mA fuel level sensor,316L stainless steel diaphragm sensor,water level transmitter with warranty |
||
Product Description
- Fully welded design for safety and reliability

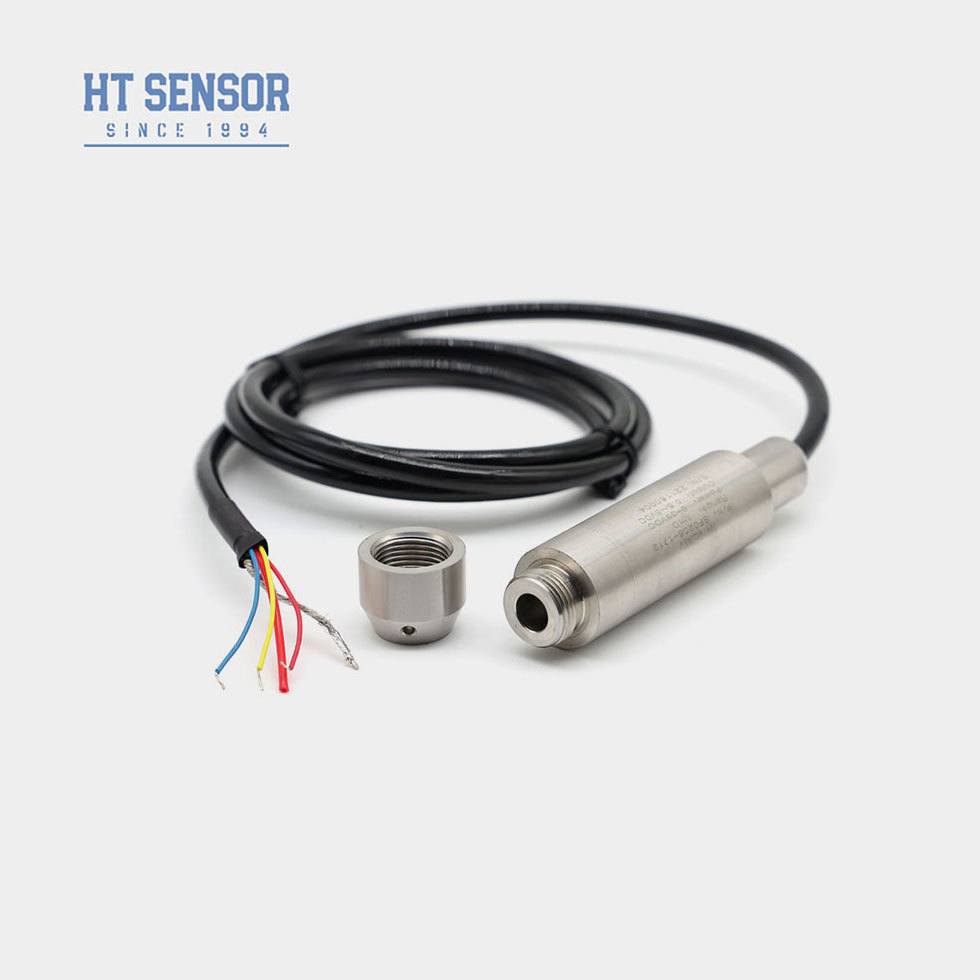

- Dual options for probe insertion and threaded installation
- Rigorously tested for high and low temperature performance
- Explosion-proof marking: ExiaIICT6
- PTFT and PU cable options
- Multiple output signal configurations available
- Compatible with 316L stainless steel and non-corrosive liquids
- Water level monitoring in sewage, industrial/municipal water systems, tanks, wells, rivers, and lakes
- Fuel level measurement in diesel and fuel tanks
| Measurement Range | 0~10m...400m |
| Pressure Type | Gauge Pressure, Absolute Pressure, Sealed Pressure |
| Overload | ≤ 2X rated range |
| Accuracy @ 25ºC | ±0.25% (Typ.) ±0.5% (Max.) |
| Repeatability | ±0.03% (Typ.) ±0.05%FS (Max.) |
| Hysteresis | ±0.03% (Typ.) ±0.05%FS (Max.) |
| Long-Term Stability | ±0.2%F.S/year (Max.) |
| Zero Temperature Drift | ±0.01%FS/ºC(>100KPa), ±0.02%FS/ºC (≤100Kpa) |
| Span Temperature Drift | ±0.01%FS/ºC(>100KPa), ±0.02%FS/ºC (≤100Kpa) |
| Compensation Temperature | 0-50ºC (0-1m . 0-2m); 0-70ºC |
| Operating Temperature | -20~80ºC |
| Storage Temperature | -30~100ºC |
| Vibration | 10g,55Hz ~ 2kHz |
| Shock | 100g |
| Housing Material | 1Cr18Ni9Ti, 316L Stainless Steel |
| Diaphragm Material | 316L Stainless Steel |
| Insulation Resistance | >=100MΩ@100VDC |
| Explosion-proof Rating | ExiaIICT6 |
| Protection Rating | IP67, IP68 |
| O-Ring Seal | Fluoro rubber |
| Weight | ~0.3Kg (without cable) |
| Cable Material | Polyethylene, Polyurethane |
| Output Signal | Supply Voltage | Output Type |
|---|---|---|
| 4~20mA | 12~30VDC | 2/3/4 wire |
| 0~10/20mA | 3 wire | |
| 0/1~5V | 5VDC | |
| 0/1~10V | ||
| 0.5~4.5V |
- Ensure compatibility between measured medium and product components
- Specify the density of the measured medium
- For strong electromagnetic or RF interference environments, provide details with your order
- Install lightning protection devices and ensure proper grounding for reliable operation
| Code | Option |
|---|---|
| BH93420 | Basic Model |
| IT | Pressure Transmitter |
| Measurement Range | 0~10m...400m |
| D1 | 24VDC Power Supply |
| D2 | 5VDC Power Supply |
| D3 | Other Power Supply |
| S1 | 4~20mADC Output |
| S2 | 1~5VDC Output |
| S3 | 0~5VDC Output |
| S4 | 0~10mADC Output |
| S5 | 0~20mADC Output |
| S6 | 0~10VDC Output |
| S7 | 0.5~4.5VDC Output |
| S8 | RS485 Output |
| G | Gauge Pressure |
| A | Absolute Pressure |
| S | Sealed Reference Pressure |
| 01 | 304 Stainless Steel Material |
| 02 | 316L Stainless Steel Material |
| C1 | PU Cable Material |
| C2 | PTFE Cable Material |
Product Highlights
Fully Welded Stainless Steel Liquid Level Transmitter BH93420-IT Liquid Level Transmitter The BH93420-IT liquid level transmitter utilizes the HT series high-precision piezoresistive diffused silicon pressure sensor. It features a fully welded stainless steel housing with hexagonal and water guide ...
