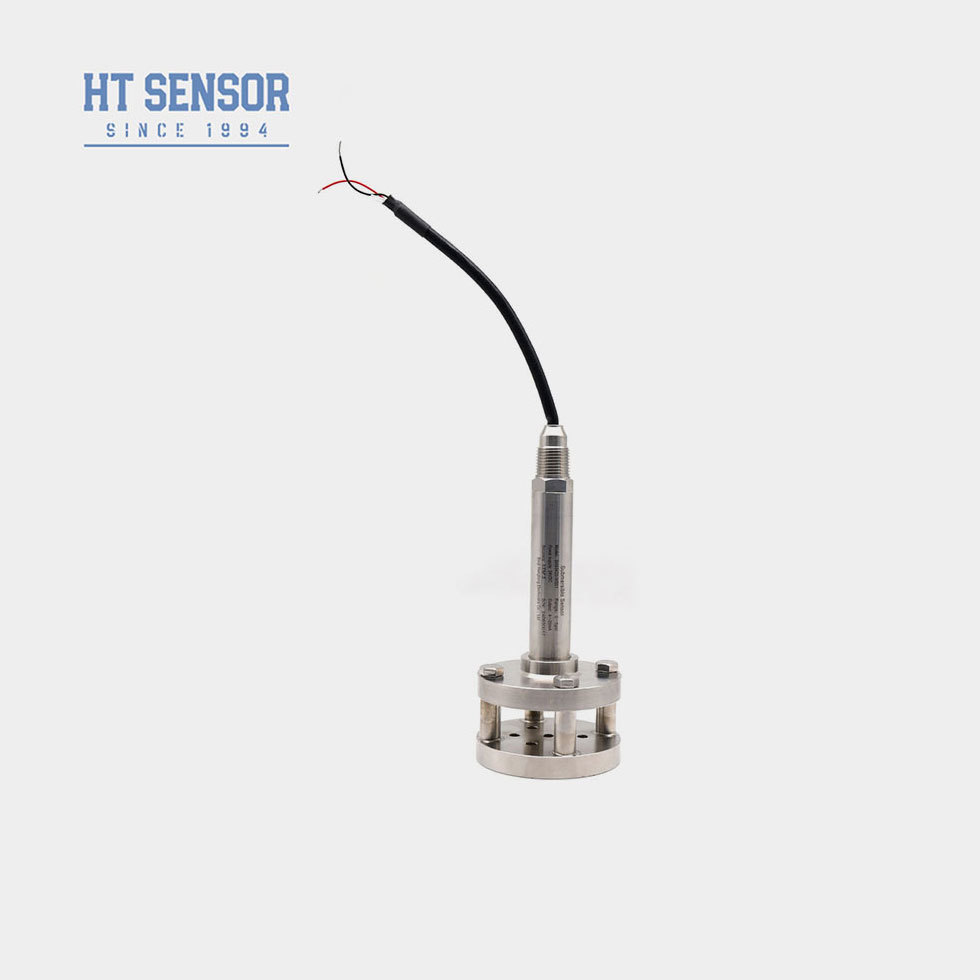

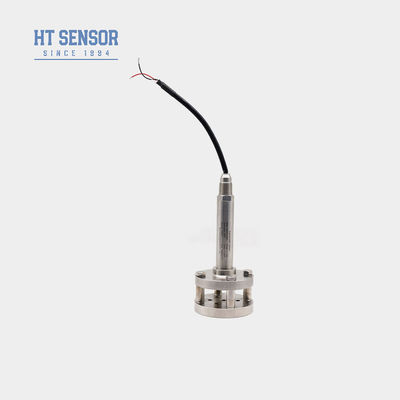

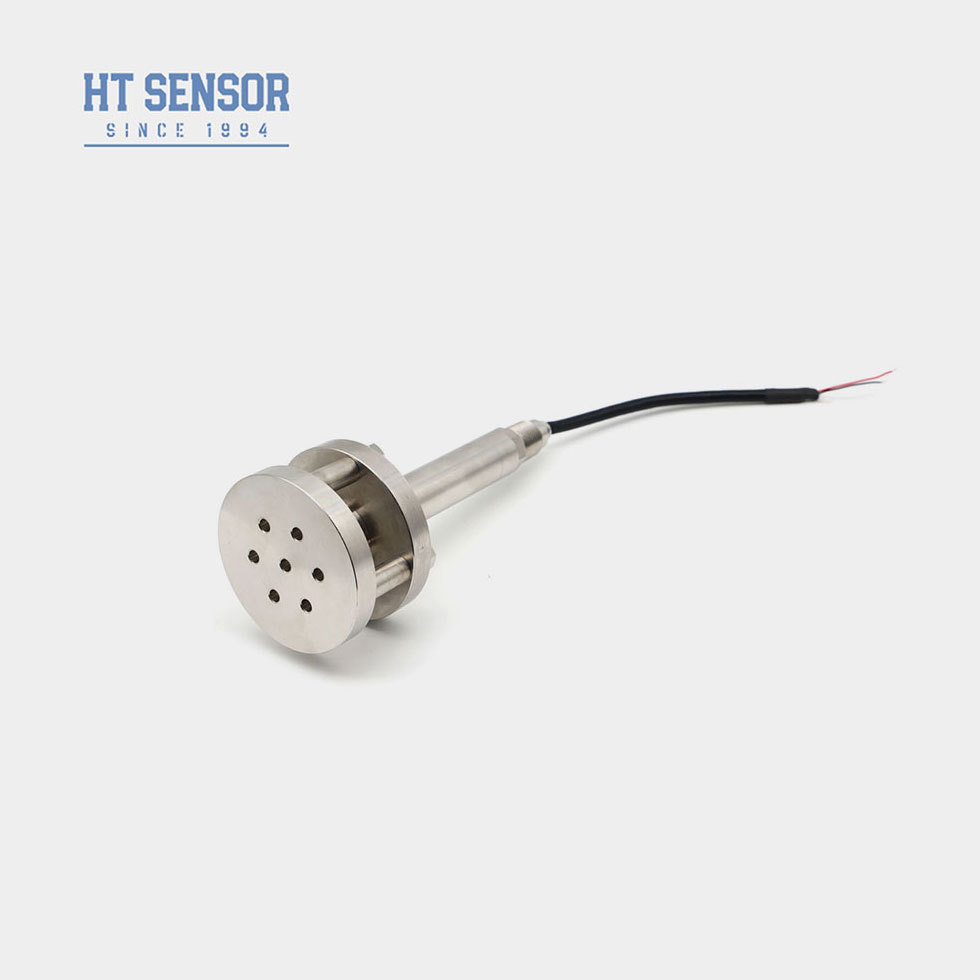

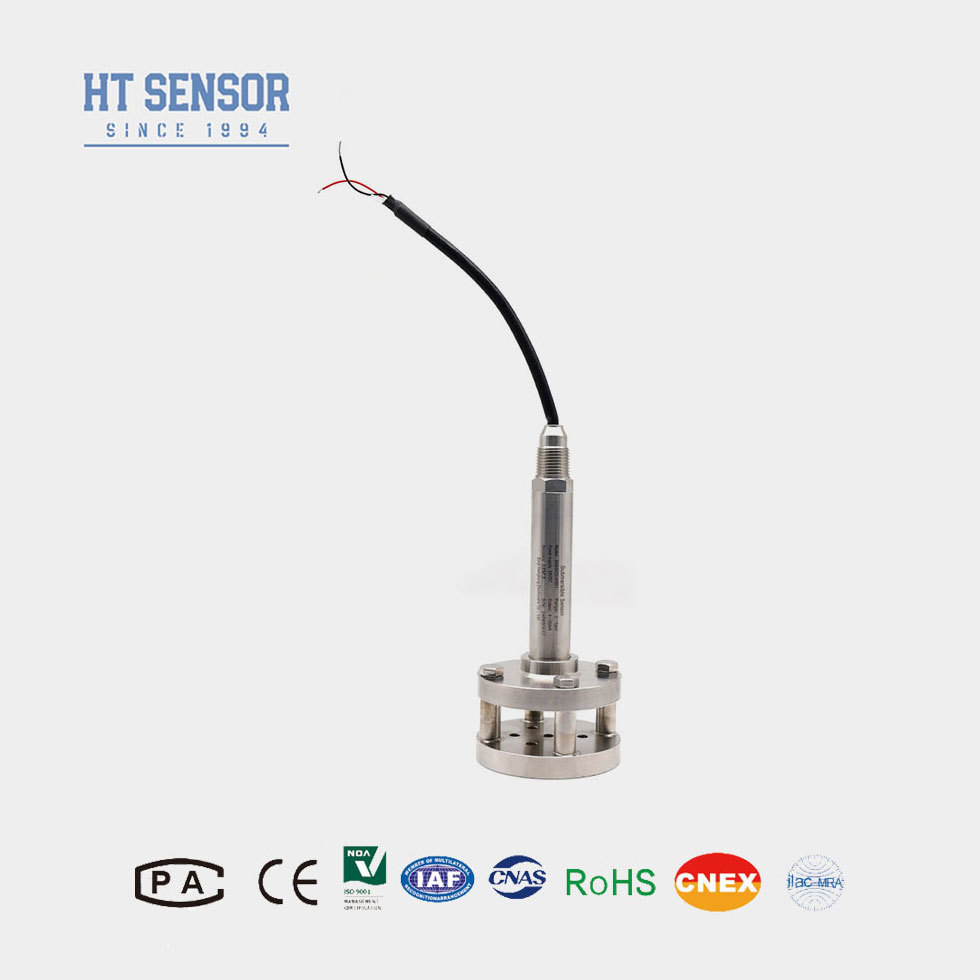

4-20mA Sewage Level Sensor IP68 316L Stainless Steel 0.5% Accuracy
Product Details
| 모델 번호: | BH983420-WS | 압력 범위: | 게이지 압력, 절대 압력 |
|---|---|---|---|
| 정확도 등급: | 0.2%,00.5% | IP 등급: | IP68 |
| 순 중량: | 2.1kg | 다이어프램 재료: | 316L 스테인리스 스틸 |
| 주택 자료: | 316L 스테인리스 스틸 | 안정: | ±0.1%FS/년(통상) |
| 측정 범위: | 0-10m | 과부하 용량: | ≤ 2x 등급 범위 |
| 작동 온도: | -20~100oC | 저장 온도: | -30 ~ 100ºC |
| 절연 저항: | > = 100mΩ@100vdc | 방폭 등급: | ExiaIICT6 |
| 출력 신호: | 4-20MA | 작동 온도: | -20 ~ 80 ℃ |
| 재료: | 304SST, 316SST | 케이블: | ptfe |
| 유형: | 실리콘 피에조레시스티브 타입 | 사용자 정의: | 비정상적인 |
| 풀 스케일 드리프트: | ± 1.5%F.SR (타이핑) ± 2%FS (Max.) | 표시하다: | LCD |
| 프로세스 압력: | -0.02-0.1MPA | 구조설계: | 플랜지 유형 |
| 사용자 정의: | OEM/ODM | 모델: | 1 |
| 케이블 길이: | 5m | HS 코드: | 90261000 |
| 강조하다 |
4-20mA sewage level sensor,IP68 water level transmitter,316L stainless steel level sensor |
||
Product Description
The BH-WS Sewage Level Sensor is a high-performance liquid level transmitter designed for demanding industrial applications. Utilizing a precision piezoresistive silicon pressure sensor with full 316L stainless steel construction, this robust device delivers reliable measurements in contaminated liquid environments.
- Engineered for harsh industrial environments
- Explosion-proof certification: ExiaIICT6
- High protection rating: IP68
- Full 316L stainless steel construction for superior corrosion resistance
- Exceptional measurement accuracy and long-term stability
- Compatible with 316L stainless steel and non-corrosive liquids
- Fuel level monitoring in diesel tanks, fuel storage containers
- Liquid level measurement in polluted environments including:
- Sludge tanks and clarifiers
- Digesters and chemical storage tanks
- Sewage pits and water reservoirs
- Alum tanks and lime slurry systems
| Parameter | Specification |
|---|---|
| Measurement Range | 0~10m...400m |
| Pressure Type | Gauge Pressure, Absolute Pressure, Sealed Pressure |
| Overload Capacity | ≤ 2X rated range |
| Accuracy @ 25°C | ±0.25% (Typ.) ±0.5% (Max.) |
| Repeatability | ±0.03% (Typ.) ±0.05%FS (Max.) |
| Long-Term Stability | ±0.2%F.S/year (Max.) |
| Operating Temperature | -20~100°C |
| Housing Material | 316L Stainless Steel |
| Explosion-proof Rating | ExiaIICT6 |
| Protection Rating | IP67, IP68 |
| Weight | ~2.1Kg (without cable) |
| Output Signal | Supply Voltage | Output Type |
|---|---|---|
| 4~20mA | 12~30VDC | 2/3/4 wire |
| 0~10/20mA | 3 wire | |
| 0/1~5V, 0/1~10V, 0.5~4.5V | 5VDC |
Please ensure compatibility with your measured medium and specify density when ordering.
- For strong electromagnetic interference environments, please provide details
- Recommended to install lightning protection devices and ensure proper grounding
| Code | Description |
|---|---|
| BH-WS | Pressure Transmitter |
| D1 | 24VDC Power Supply |
| S1 | 4~20mADC Output |
| G | Gauge Pressure Type |
| C1 | PE Cable Material |
