| 인증: | CE, RoHS |
|---|---|
| 최소 주문 수량: | 1 |
| 가격: | 48 |
| 모델 번호: | BP93420-III | 측정 매체: | 액체 |
|---|---|---|---|
| 정확도 등급: | 0.5% | 압력 범위: | -100kpa...0kpa ~10kpa...100MPa |
| IP 등급: | IP65 | 압력 유형: | 측정 압력, 절대 압력, 밀폐 압력 |
| 주택 자료: | 316L | 주파수 응답: | 2.4kHz |
| 무게: | ~1.2kg | 초과 적재: | 정격 범위의 ≤ 1.5 배 |
| 반복성: | ≤±0.1%FS | 장기간 안정성: | ± 0.1%fs/년 (일반) ± 0.2%fs/년 (최대) |
| 작동 온도: | -20ºC ~ 80ºC | 다이어프램 재료: | 316L |
| 방폭 등급: | 전 DB (데시벨) IIC T6 Gb | ||
| 강조하다: | industrial pressure sensor with IP65,316L pressure transmitter 0.5% accuracy,BP93420-III pressure transmitter IP65 |
||

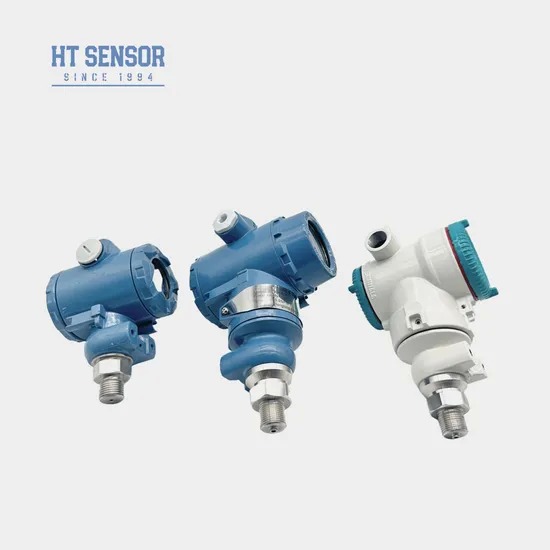

The BP93420III pressure transmitter utilizes HT series silicon piezoresistive isolation oil-filled core as the signal measuring element. The signal processing circuit converts the sensor signal into standard output signals. Rigorous testing and aging screening of components ensures stable, reliable performance with strong anti-interference capability.
| Parameter | Specification |
|---|---|
| Measurement Range | -100kPa...0kPa ~10kPa...100MPa |
| Pressure Type | Gauge Pressure, Absolute Pressure, Sealed Pressure |
| Overload | ≤ 1.5 times of the rated range |
| Accuracy @ 25ºC | ±0.25% (Typical) ±0.5% (Maximum) |
| Repeatability | ≤±0.1%FS |
| Hysteresis | ≤±0.1%FS |
| Long-Term Stability | ±0.1%F.S/Year(Typical) ±0.2%F.S/Year(Maximum) |
| Zero Point Temperature Drift | ±0.02%F.S/ºC(≤100KPa) ±0.01%F.S/ºC(>100KPa) |
| Full Scale Temperature Drift | ±0.02%F.S/ºC(≤100KPa) ±0.01%F.S/ºC(>100KPa) |
| Frequency Response | 2.4Khz |
| Compensation Temperature | 0-70ºC(≤10mpa,customizable) |
| Operating Temperature | -20ºC~80ºC |
| Storage Temperature | -40ºC~120ºC |
| Vibration | 10g,55Hz ~ 2kHz |
| Housing Material | Cast aluminum |
| Diaphragm Material | 316L |
| Insulation Resistance | 100MΩ 100VDC |
| Explosion-proof Rating | Ex db IIC T6 Gb |
| Protection Rating | IP65 |
| O-Ring Seal | Fluoro rubber |
| Weight | ~1.2kg |
| Output Signal | Supply Voltage | Output Type |
|---|---|---|
| 4~20mA | 12~30VDC | 2/3/4 wire |
| 0~10/20mA | 3 wire | |
| 0/1~5V 0/1~10V 0.5~4.5V |
5VDC | |
| RS485 Communication Protocol | 3.6~30V / Battery | 4 wire |
| Code | Description |
|---|---|
| BP93420XX | Pressure Transmitter |
| IB | General Pressure Transmitter |
| IX | Display Pressure Transmitter |
| IE | Shock-resistant Aviation Pressure Transmitter |
| IIC/III | Industrial General/Display Pressure Transmitter |
| IF | Moisture-proof Pressure Transmitter |
| IIE/IIIE | General/Display Pressure Transmitter |
| IN | Air Conditioning Dedicated Pressure Transmitter |
| IC | High-temperature Pressure Transmitter |
| IQ/IQT | Large Diaphragm/High-temperature Pressure Transmitter |
