| 인증: | CE, RoHS, ISO9001 |
|---|---|
| 최소 주문 수량: | 1 |
| 가격: | 60 |
| 모델 번호: | BH93420-IT | 압력 범위: | 게이지 압력, 절대 압력 |
|---|---|---|---|
| 정확도 등급: | 00.25%,00.5% | IP 등급: | IP68 |
| 순 중량: | 0.3kg | 다이어프램 재료: | 316L 스테인리스 스틸 |
| 안정: | ±0.1%FS/년(통상) | 배상 임시.: | -10 ~ 70ºC |
| 측정 범위: | 0 ~ 10m… 400m | 초과 적재: | ≤ 2x 등급 범위 |
| 반복성: | ± 0.03% (타이핑) ± 0.05% FS (Max.) | 작동 온도: | -20~80oC |
| 저장 온도: | -30 ~ 100ºC | 주택 자료: | 1CR18NI9TI, 316L 스테인리스 스틸 |
| 방폭 등급: | ExiaIICT6 | ||
| 강조하다: | HT Series liquid level transmitter,Hex liquid level transmitter IP68,Water level transmitter 0.25% accuracy |
||

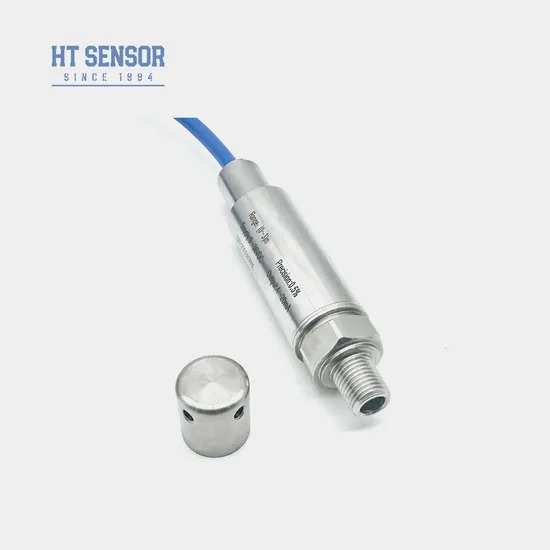

The BH93420-IT liquid level transmitter utilizes the HT series high-precision piezoresistive diffused silicon pressure sensor. Featuring a fully welded stainless steel housing with hexagonal and water guide head design, this transmitter employs waterproof sealing technology to meet various installation requirements and adapt to diverse application scenarios.
| Parameter | Specification |
|---|---|
| Measurement Range | 0~10m...400m |
| Pressure Type | Gauge Pressure, Absolute Pressure, Sealed Pressure |
| Accuracy @ 25°C | ±0.25% (Typ.) ±0.5% (Max.) |
| Operating Temperature | -20~80°C |
| Housing Material | 1Cr18Ni9Ti, 316L Stainless Steel |
| Protection Rating | IP67, IP68 |
| Output Signal Options | 4~20mA, 0~10/20mA, 0/1~5V, 0/1~10V, 0.5~4.5V, RS485 |
| Selection | Options |
|---|---|
| Power Supply | D1: 24VDC | D2: 5VDC | D3: Other |
| Output Signal | S1: 4~20mADC | S2: 1~5VDC | S3: 0~5VDC | S4: 0~10mADC | S5: 0~20mADC | S6: 0~10VDC | S7: 0.5~4.5VDC | S8: RS485 |
| Pressure Type | G: Gauge Pressure | A: Absolute Pressure | S: Sealed Reference Pressure |
| Material | 01: 304 Stainless Steel | 02: 316L Stainless Steel |
| Cable Material | C1: PU | C2: PTFE |
A: High precision, durability, and excellent performance. Customization available.
A: Yes, our engineers can tailor products to meet specific needs. We provide OEM and ODM services.
A: Our facilities can produce up to 30,000 units monthly. Contact our sales team for large orders.
A: 5-8 working days for standard models. Customized products may vary.
