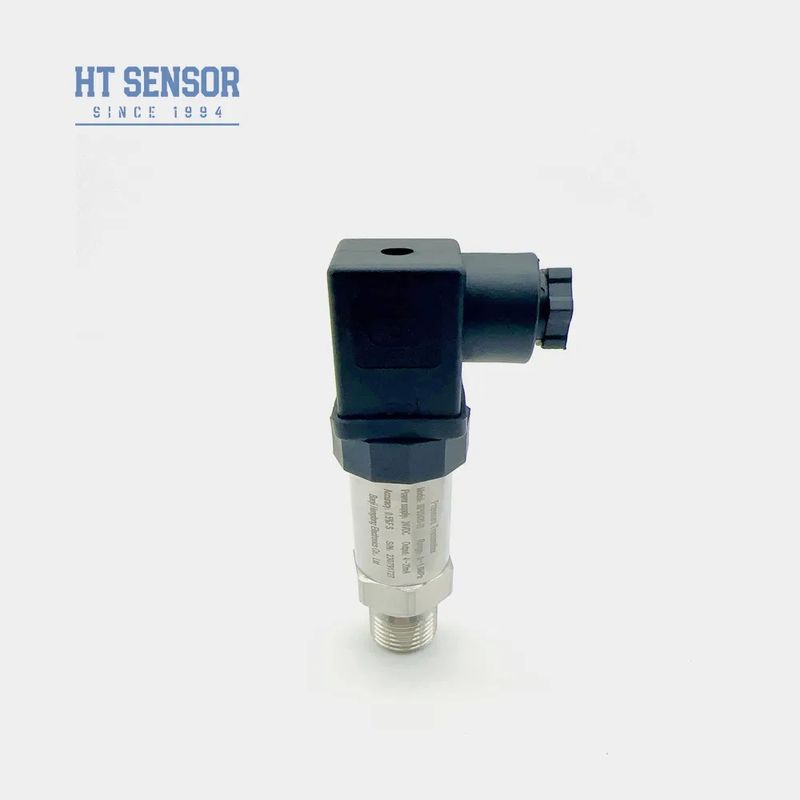

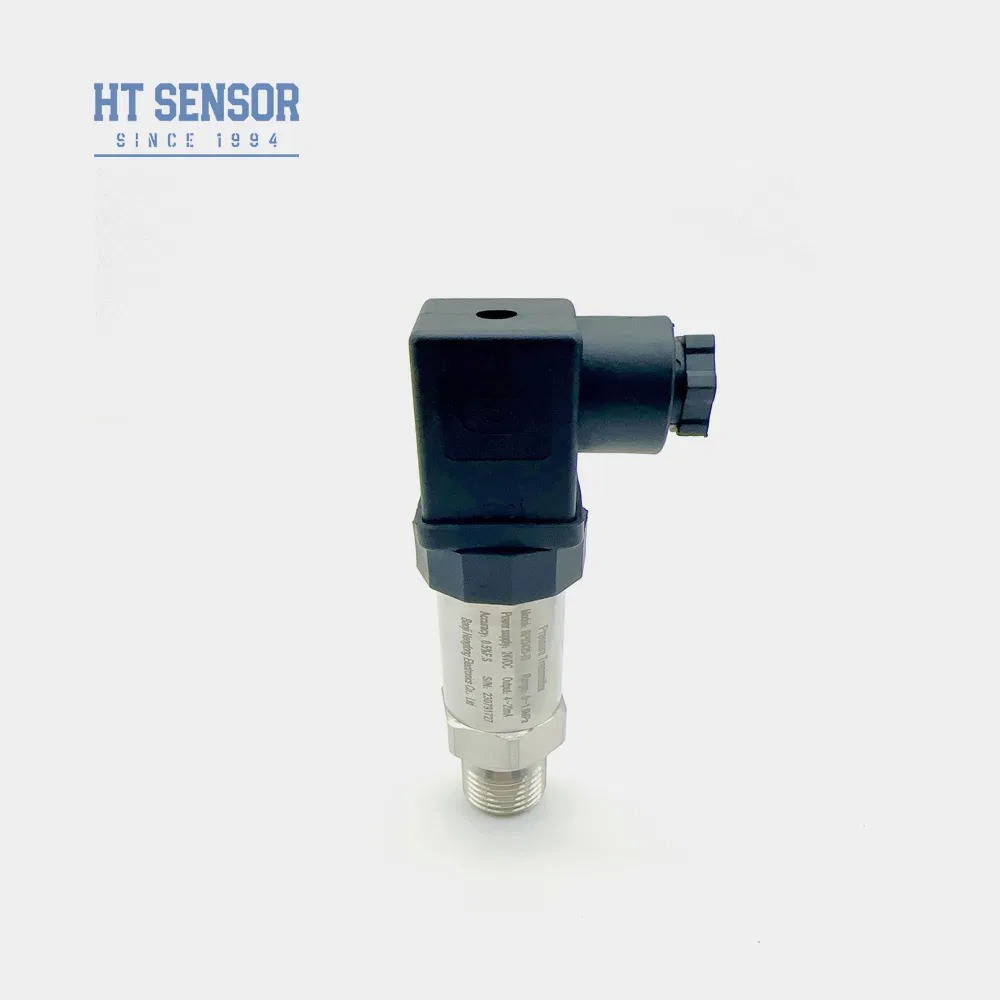

HTsensor BP93420-IB 4-20mA Pressure Transmitter 0.5G Accuracy IP65
Product Details
| 모델 번호: | BP93420 ib | 측정 매체: | 액체 |
|---|---|---|---|
| 정확도 등급: | 0.5g | 압력 범위: | 0kpa~10kpa...100MPa |
| IP 등급: | IP65 | 압력 유형: | 측정 압력, 절대 압력, 밀폐 압력 |
| 주택 자료: | 316L | 장기간 안정성: | +-0.2% F.S/년 (형) |
| 다이어프램 재료: | 316L | 작동 온도: | -20ºC ~ 80ºC |
| 저장 온도: | -40ºC ~ 120ºC | 출력 신호: | 4 ~ 20MA, 0 ~ 10/20MA, 0/1 ~ 5V, 0/1 ~ 10V, 0.5 ~ 4.5V |
| 공급 전압: | 12 ~ 30VDC, 5VDC | 무게: | ~0.15kg |
| 절연 저항: | 100mΩ 100VDC | ||
| 강조하다 |
4-20mA pressure transmitter with IP65,industrial pressure sensor 0.5G accuracy,HTsensor BP93420-IB pressure transmitter |
||
Product Description
- Wide measuring range with stainless steel construction and diverse pressure interface options
- Compact and lightweight design for easy installation
- Adjustable zero and full-scale calibration
- High precision measurement with all stainless steel structure
- Versatile output signal options
- Pressure measurement of non-corrosive gases and liquids (316L stainless steel compatible)
- Marine and aviation industry applications
- Industrial processes including petroleum, chemical, metallurgy, power generation, and hydrology
- Hydraulic and pneumatic control systems
| Measurement Range | -100kPa...0kPa ~ 10kPa...100MPa |
| Pressure Type | Gauge Pressure, Absolute Pressure, Sealed Pressure |
| Overload | ≤ 1.5 times of rated range |
| Accuracy @ 25ºC | ±0.25% (Typical) ±0.5% (Maximum) |
| Long-Term Stability | ±0.1%F.S/Year(Typical) ±0.2%F.S/Year(Maximum) |
| Operating Temperature | -20ºC~80ºC |
| Housing Material | 304, 316L Stainless Steel |
| Protection Rating | IP65 |
| Explosion-proof Rating | Ex db IIC T6 Gb |
- Ensure medium compatibility with product contact parts
- Explosion-proof models exclude digital display heads
- Models with LCD/LED display require ≥20VDC power supply
- Install lightning protection devices and ensure proper grounding
- Default cable length: 1.5m (polyethylene material)
- Specify special requirements (vibration, EMI/RFI, etc.) when ordering
| Code | Outline Construction |
|---|---|
| IB | General Pressure Transmitter |
| IX | Display Pressure Transmitter |
| IE | Shock-resistant Aviation Pressure Transmitter |
| Measurement Range: -0.1...0~0.01...100MPa (0-X)Kpa or MPa | |
| Code | Power Supply |
| D1 | 24VDC |
| D2 | 5VDC |
| Code | Output Signal |
| S1 | 4~20mADC |
| S5 | 0~20mADC |
