| 인증: | CE, RoHS, ISO9001 |
|---|---|
| 최소 주문 수량: | 1 |
| 가격: | 50 |
| 모델 번호: | BH93420 3세 | 출력 신호: | 아날로그 유형 |
|---|---|---|---|
| 출력 상태: | 신호 출력 | 생산 과정: | 잠수형 |
| 프로브 유형: | 프로브 유형 | 출력 형태: | 압력값 |
| IP 등급: | IP68 | 순 중량: | 0.6kg |
| 다이어프램 재료: | 316L 스테인리스 스틸 | 정확성: | 0.25%, 0.3%, 0.5% |
| 케이블 재료: | 체육, PU, PTFE | 측정 범위: | 0 ~ 10m… 400m |
| 압력 유형: | 측정 압력, 절대 압력, 밀폐 압력 | 과부하 용량: | ≤ 2x 등급 범위 |
| 작동 온도: | -20~80oC | ||
| 강조하다: | IP68 water level sensor,316L stainless steel water transmitter,high accuracy water level sensor |
||

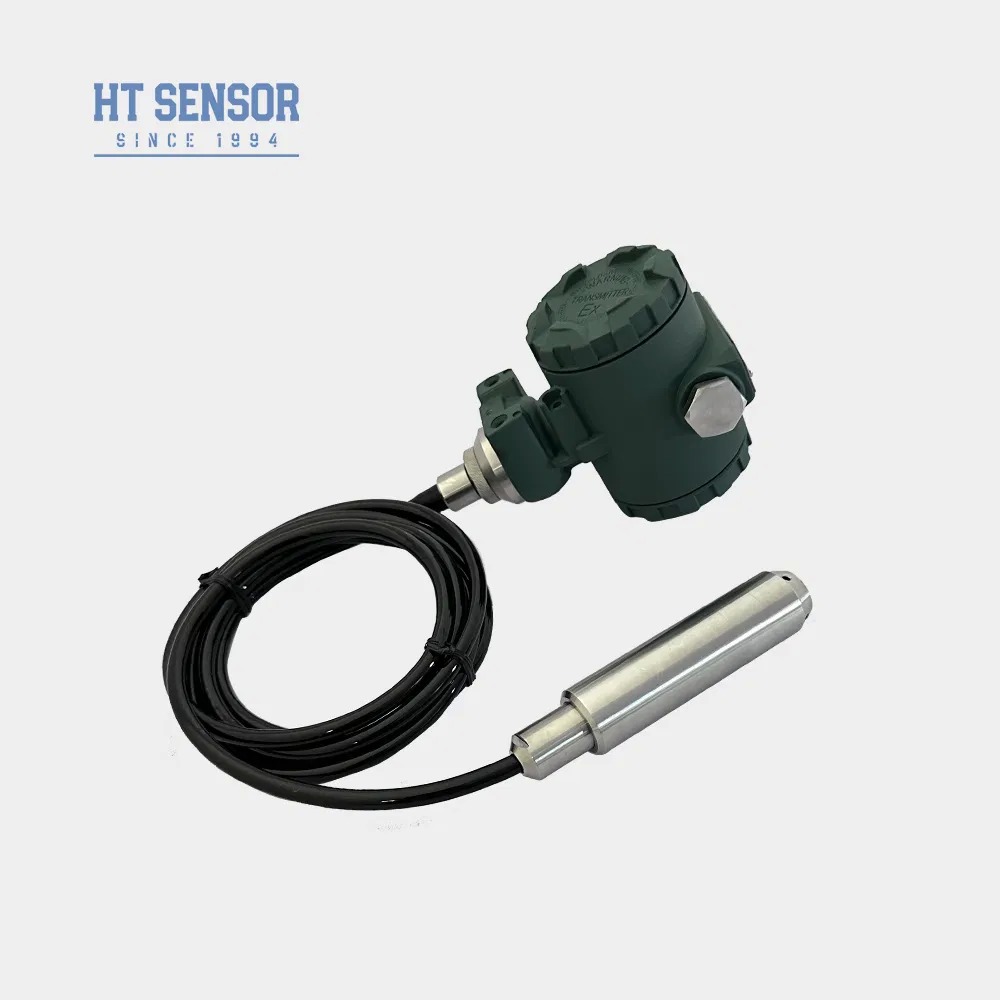

BH93420-III Water Level Transmitter
The BH93420-III water level transmitter features a highly precise piezoresistive diffused silicon pressure sensor as its signal measuring element. It measures static pressure, which directly correlates to water level, and converts it into a standard signal output using amplification circuitry. This establishes a linear relationship between output signal and liquid level, ensuring precise and accurate water level measurement.
| Measurement Range | 0~10m...400m |
| Pressure Type | Gauge Pressure, Absolute Pressure, Sealed Pressure |
| Overload | ≤ 2X rated range |
| Accuracy @ 25ºC | ±0.25% (Typ.) ±0.5% (Max.) |
| Repeatability | ±0.03% (Typ.) ±0.05%FS (Max.) |
| Hysteresis | ±0.03% (Typ.) ±0.05%FS (Max.) |
| Long-Term Stability | ±0.15%F.S/year (Max.) |
| Zero Temperature Drift | ±0.01%FS/ºC(>100KPa), ±0.02%FS/ºC (≤100Kpa) |
| Span Temperature Drift | ±0.01%FS/ºC(>100KPa), ±0.02%FS/ºC (≤100Kpa) |
| Compensation Temperature | 0-50ºC (0-1m . 0-2m); 0-70ºC |
| Operating Temperature | -20~80ºC |
| Storage Temperature | -30~100ºC |
| Vibration | 10g,55Hz ~ 2kHz |
| Shock | 100g |
| Housing Material | Cast aluminum, 1Cr18Ni9Ti |
| Diaphragm Material | 316L Stainless Steel |
| Insulation Resistance | >=100MΩ@100VDC |
| Explosion-proof Rating | ExiaIICT6 |
| Protection Rating | IP68 |
| O-Ring Seal | Fluoro rubber |
| Weight | ~1.5Kg (without cable) |
| Cable Material | Polyethylene, Polyurethane, PTFE cable |
| Output Signal | Supply Voltage | Output Type |
|---|---|---|
| 4~20mA | 15~30VDC | 2/3/4 wire |
| RS485 Communication Protocol | 4 wire |
