| 인증: | CE, RoHS |
|---|---|
| 최소 주문 수량: | 1 |
| 가격: | 15 |
| 모델 번호: | BP156 | 측정 매체: | 가스 |
|---|---|---|---|
| 정확도 등급: | 0.2g | 압력 범위: | 0kpa~10kpa...5MPa |
| IP 등급: | IP65 | 압력 유형: | 측정 압력, 절대 압력, 밀폐 압력 |
| 주택 자료: | 316L | 무게: | 0.1kg |
| 다이어프램 재료: | 316L | 작동 온도: | -20ºC ~ 80ºC |
| 저장 온도: | -40ºC ~ 120ºC | 진동 저항: | 10g, 55Hz ~ 2kHz |
| 절연 저항: | 100mΩ 100VDC | 방폭 등급: | 전 DB (데시벨) IIC T6 Gb |
| 주파수 응답: | 2.4kHz | ||
| 강조하다: | BP156 air compressor pressure transmitter,0.2G accuracy pressure sensor,IP65 industrial pressure transmitter |
||

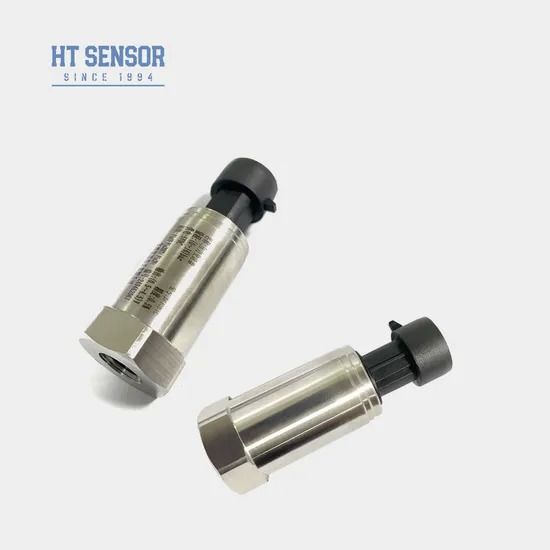

The BP156 pressure transmitter is a cost-effective solution specifically designed for air compressors and refrigeration equipment. Featuring advanced technology and a high-performance transmitter circuit, this compact device offers excellent moisture resistance and anti-electromagnetic interference capabilities.
| Measurement Range | 0kPa ~ 10kPa...5MPa |
| Pressure Type | Gauge Pressure, Absolute Pressure, Sealed Pressure |
| Accuracy @ 25ºC | ±0.25% (Typical) ±0.5% (Maximum) |
| Long-Term Stability | ±0.1%F.S/Year(Typ.) ±0.2%F.S/Year(Max.) |
| Operating Temperature | -20ºC~80ºC |
| Housing Material | 304, 316L |
| Protection Rating | IP65 |
| Explosion-proof Rating | Ex db IIC T6 Gb |
| Output Signal | Supply Voltage | Output Type |
|---|---|---|
| 4~20mA | 12~30VDC | 2/3/4 wire |
| 0~10/20mA | 3 wire | |
| 0/1~5V, 0/1~10V, 0.5~4.5V | 5VDC |
Our transmitters offer high precision, durability, and excellent performance. Customization options are available to meet specific requirements.
Yes, our engineering team can develop customized solutions. We provide comprehensive OEM and ODM services.
Our facilities can produce up to 30,000 units monthly. For large orders, please contact our sales team for scheduling.
Standard models ship in 5-8 working days. Custom products may require additional time.
