| 인증: | CE, RoHS, ISO9001 |
|---|---|
| 최소 주문 수량: | 1 |
| 가격: | 40 |
| 모델 번호: | BH93420-II | 출력 신호: | 4~20mA 또는 RS485 |
|---|---|---|---|
| IP 등급: | IP68 | 순 중량: | 0.3kg |
| 다이어프램 재료: | 316L 스테인리스 스틸 | 정확성: | 0.5%F.S |
| 측정 범위: | 0 ~ 10m… 400m | 압력 유형: | 측정 압력, 절대 압력, 밀폐 압력 |
| 초과 적재: | 정격 범위의 ≤ 2 x | 작동 온도: | -20~80oC |
| 저장 온도: | -30 ~ 100ºC | 주택 자료: | 캐스트 알루미늄, 1cr18ni9ti |
| 절연 저항: | > = 100mΩ@100vdc | 방폭 등급: | ExiaIICT6 |
| 무게: | ~ 1.1kg (케이블없이) | ||
| 강조하다: | 4-20mA water level transmitter,high accuracy water level sensor,0.5% accuracy level transmitter |
||

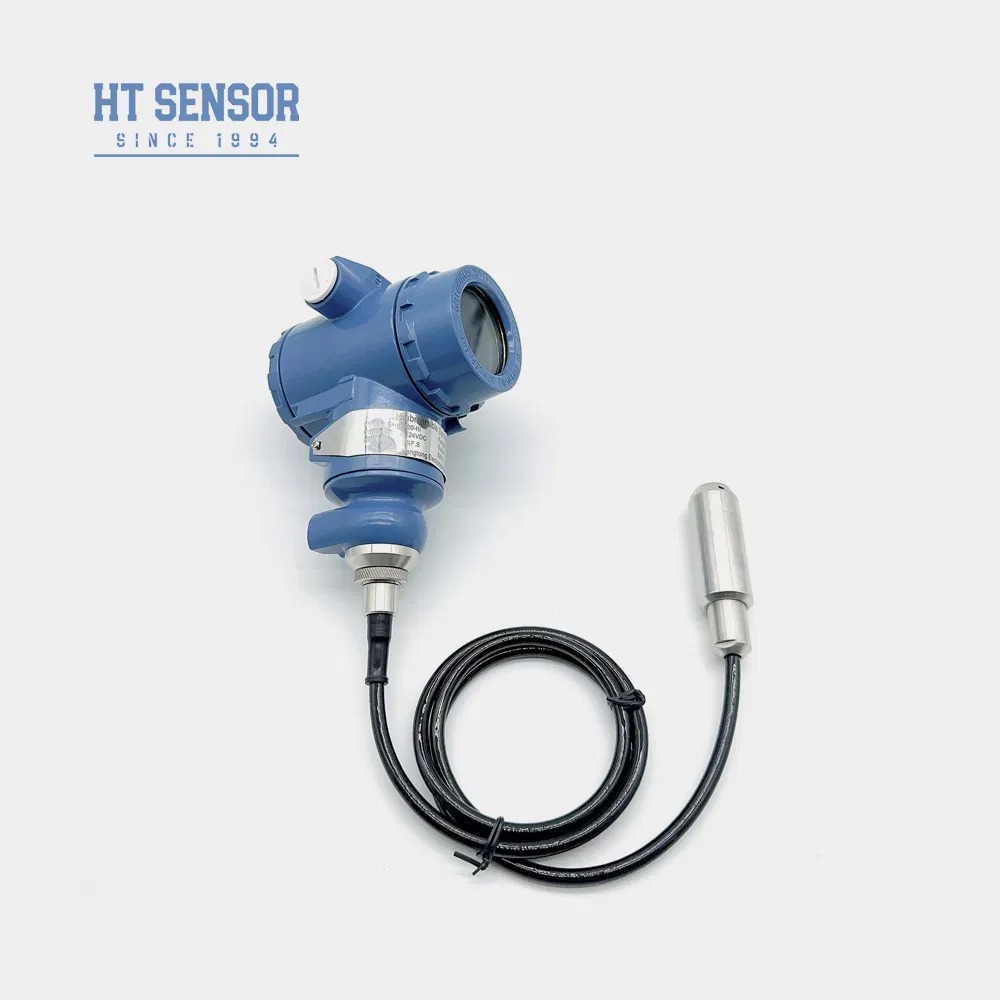

The BH93420-II water level transmitter utilizes a high-precision diffused silicon piezoresistive pressure sensor for accurate liquid level measurement. The static pressure measurement produces a millivolt signal proportional to liquid height, converted into a standard output signal through amplification circuitry.
| Parameter | Specification |
|---|---|
| Measurement Range | 0~10m...400m |
| Pressure Type | Gauge Pressure, Absolute Pressure, Sealed Pressure |
| Accuracy @ 25ºC | ±0.5% (Typ.) ±0.1% (Max.) |
| Operating Temperature | -20~80ºC |
| Housing Material | Cast aluminum, 1Cr18Ni9Ti |
| Diaphragm Material | 316L Stainless Steel |
| Protection Rating | IP68 |
| Output Signal | 4~20mA (15~30VDC) or RS485 |
| Option | Code | Description |
|---|---|---|
| Model | BH93420-II/III | Liquid level transmitter with 2088 housing |
| Power Supply | D1 | 24VDC |
| Output Signal | S1/S2 | 4~20mADC or RS485 |
| Housing | B4/B5 | 2088 industrial housing (with/without display) |
| Pressure Type | G/A/S | Gauge/Absolute/Sealed Reference Pressure |
| Cable Material | C1/C2/C3 | PE/PU/PTFE |
