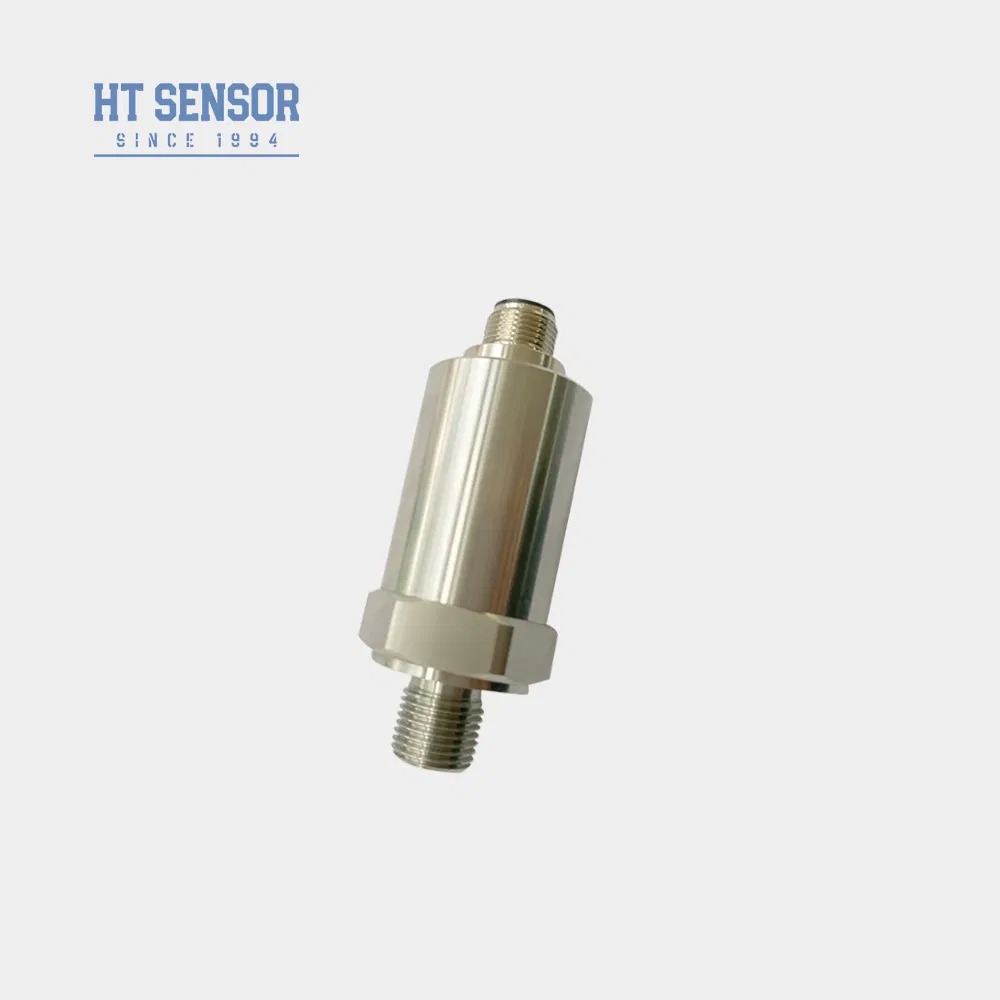

BP156 Pressure Transmitter 0.2G Accuracy IP65 for Liquid Oil Water
Product Details
| 모델 번호: | BP156 | 측정 매체: | 액체 |
|---|---|---|---|
| 정확도 등급: | 0.2g | 압력 범위: | 0kpa~10kpa...5MPa |
| IP 등급: | IP65 | 압력 유형: | 측정 압력, 절대 압력, 밀폐 압력 |
| 주택 자료: | 316L | 보상 온도: | -10oC~70oC |
| 다이어프램 재료: | 316L | 작동 온도: | -20ºC ~ 80ºC |
| 저장 온도: | -40ºC ~ 120ºC | 절연 저항: | 100mΩ 100VDC |
| 방폭 등급: | 전 DB (데시벨) IIC T6 Gb | 무게: | ~ 0.05kg |
| 공급 전압: | 12 ~ 30VDC, 5VDC | ||
| 강조하다 |
BP156 pressure transmitter IP65,industrial pressure sensor 0.2G accuracy,liquid oil water pressure transmitter |
||
Product Description
- Wide measuring range with stainless steel structure and diverse pressure interface forms
- IP65 protection rating stainless steel construction
- Adjustable zero and full-scale settings
- High precision with all stainless steel structure
- Pressure measurement of non-corrosive gases and liquids with 316L stainless steel
- Marine and aviation industry applications
- Industrial processes including petroleum, chemical, metallurgy, power generation, and hydrology
- Hydraulic and pneumatic control systems
| Measurement Range | 0kPa ~ 10kPa…5MPa |
| Pressure Type | Gauge Pressure, Absolute Pressure, Sealed Pressure |
| Overload | ≤ 1.5 times of the rated range |
| Accuracy @ 25ºC | ±0.25% (Typ.) ±0.5% (Max.) |
| Repeatability & Hysteresis | 0.02%F.S(Typ.) 0.05%F.S(Max.) |
| Long-Term Stability | ±0.1%F.S/Year(Typ.) ±0.2%F.S/Year(Max.) |
| Zero Point Temperature Drift | ±0.02%F.S/ºC(≤100KPa) ±0.01%F.S/ºC(>100KPa) |
| Full Scale Temperature Drift | ±0.02%F.S/ºC(≤100KPa) ±0.01%F.S/ºC(>100KPa) |
| Frequency Response | 2.4Khz |
| Compensation Temperature | 0-70ºC(≤10mpa,customizable) |
| Operating Temperature | -20ºC~80ºC |
| Storage Temperature | -40ºC~120ºC |
| Vibration | 10g,55Hz ~ 2kHz |
| Housing Material | 304,316L |
| Diaphragm Material | 316L |
| Insulation Resistance | 100MΩ 100VDC |
| Explosion-proof Rating | Ex db IIC T6 Gb |
| Protection Rating | IP65 |
| O-Ring Seal | Fluoro rubber |
| Weight | ~0.05kg |
| Output Signal | Supply Voltage | Output Type |
|---|---|---|
| 4~20mA | 12~30VDC | 2/3/4 wire |
| 0~10/20mA | 3 wire | |
| 0/1~5V 0/1~10V 0.5~4.5V |
5VDC |
- Ensure the measured medium is compatible with the product's contact parts
- Explosion-proof type products do not include digital display heads
- For transmitters with LCD/LED display, power supply should not be lower than 20VDC
- Install lightning protection devices and ensure proper grounding for reliable operation
- Fluoro rubber O-ring rated for -20ºC to 250ºC; choose EPDM for temperatures below -20ºC
- Default cable length is 1.5m (polyethylene material); specify alternatives when ordering
- Notify us of special requirements (vibration, impact, EMI/RFI) in your order
| BP15X | Analog Pressure Transmitter |
|
Outline Construction: 5 - Packard plug | 6 - Sealed Direct Output Cable 1.5 meters 7 - Mini Hirschmann Connector | 8 - Large Hirschmann Connector |
|
|
Measurement Range: 0kPa ~ 10kPa…5MPa (0-X)Kpa or MPa (X indicates actual measuring range) |
|
|
Power Supply: D1 - 24VDC | D2 - 5VDC | D3 - Other |
|
|
Output Signal: S1 - 4~20mADC | S2 - 1~5VDC | S3 - 0~5VDC | S4 - 0~10mADC S5 - 0~20mADC | S6 - 0~10VDC | S7 - 0.5~4.5VDC |
|
|
Pressure Connection: J1 - M20×1.5 | J2 - G1/2 | J3 - G1/4 | J4 - 7/16-20UNF | J5 - Others(¢50.4 Flange) |
|
|
Electrical Connection: B1 - Hirschmann | B2 - PG7 | B3 - Cable Sealed Outlet 1.5 meters | B4 - Other |
|
|
Pressure Type: G - Gauge Pressure | A - Absolute Pressure | S - Sealed Reference Pressure |
|
Product Highlights
BP156 Pressure Transmitter The BP156 pressure transmitter utilizes the HT series silicon pressure-resistant isolation membrane oil-filled core as the signal measuring element. The signal processing circuit is located inside a stainless steel housing, converting the sensor signal into a standard ...
