| 인증: | CE, RoHS, ISO9001 |
|---|---|
| 최소 주문 수량: | 1 |
| 가격: | 42 |
| 출력 신호: | 4~20mA 또는 RS485 | IP 등급: | IP68 |
|---|---|---|---|
| 순 중량: | 0.3kg | 다이어프램 재료: | 316L 스테인리스 스틸 |
| 정확성: | 0.25%, 0.5% | 측정 범위: | 0 ~ 10m… 400m |
| 압력 유형: | 측정 압력, 절대 압력, 밀폐 압력 | 과부하 용량: | ≤ 2x 등급 범위 |
| 반복성: | ± 0.03% (타이핑) ± 0.05% FS (Max.) | 장기간 안정성: | ±0.2% F.S/년 (최다) |
| 작동 온도: | -20~80oC | 저장 온도: | -30 ~ 100ºC |
| 주택 자료: | 1Cr18Ni9Ti | 절연 저항: | > = 100mΩ@100vdc |
| 방폭 등급: | ExiaIICT6 | ||
| 강조하다: | 4-20mA submersible water level sensor,IP68 water level transmitter,high accuracy water level sensor |
||

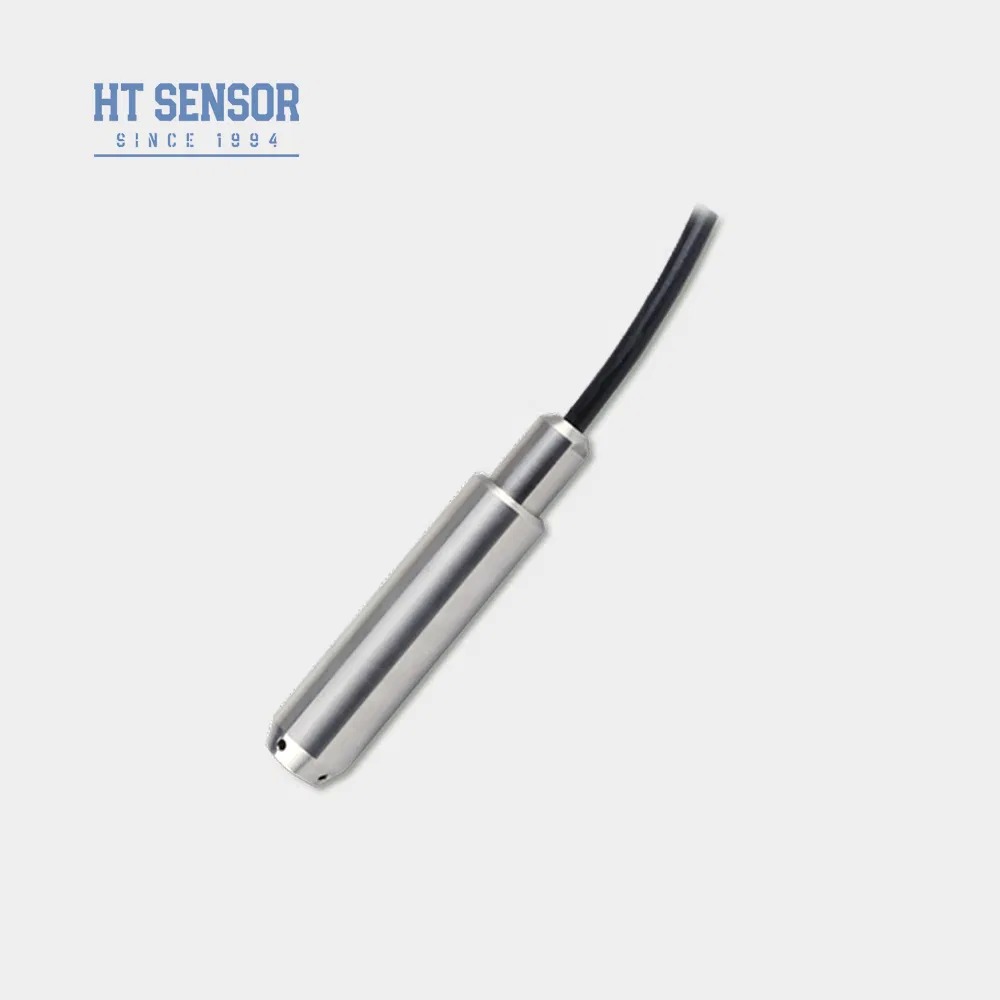

The BH93420-I water level sensor utilizes HT series diffused silicon isolation oil-filled core as its signal measuring element. Featuring a full stainless steel housing and compact one-piece structure, this transmitter offers excellent waterproof performance with its completely sealed stainless steel sensing part.
| Measurement Range | 0~10m...400m |
| Pressure Type | Gauge Pressure, Absolute Pressure, Sealed Pressure |
| Overload | ≤ 2X rated range |
| Accuracy @ 25ºC | ±0.25% (Typ.) ±0.5% (Max.) |
| Repeatability | ±0.03% (Typ.) ±0.05%FS (Max.) |
| Hysteresis | ±0.03% (Typ.) ±0.05%FS (Max.) |
| Long-Term Stability | ±0.2%F.S/year (Max.) |
| Operating Temperature | -20~80ºC |
| Protection Rating | IP67, IP68 |
| Explosion-proof Rating | ExiaIICT6 |
| Output Signal | Supply Voltage | Output Type |
|---|---|---|
| 4~20mA | 12~30VDC | 2/3/4 wire |
| 0~10/20mA | 3 wire | |
| 0/1~5V, 0/1~10V, 0.5~4.5V | 5VDC | |
| RS485 Communication Protocol | 3.6~30V / Battery | 4 wire |
| Parameter | Options |
|---|---|
| Power Supply | D1: 24VDC | D2: 5VDC | D3: Other |
| Output Signal | S1: 4~20mADC | S5: 0~20mADC | S2: 1~5VDC | S6: 0~10VDC | S3: 0~5VDC | S7: 0.5~4.5VDC | S4: 0~10mADC | S8: RS485 |
| Pressure Type | G: Gauge Pressure | A: Absolute Pressure | S: Sealed Reference Pressure |
| Material | 01: 304 Stainless Steel | 02: 316L Stainless Steel |
| Cable Material | C1: PE | C2: PU |
