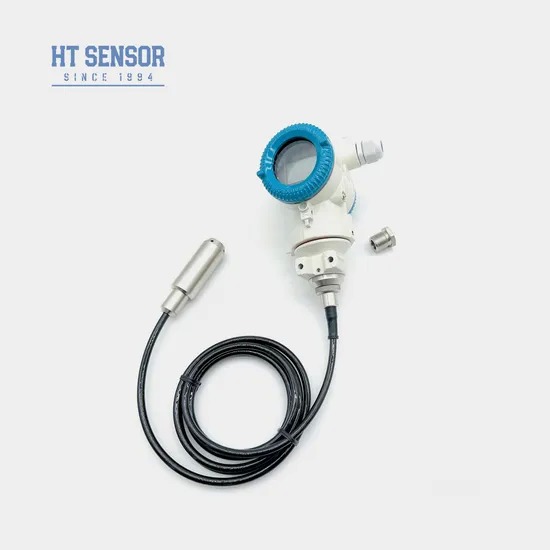

BH93420-I IP68 Water Level Transmitter 4-20mA Output 0-10m Range

BH93420-I IP68 Water Level Transmitter 4-20mA Output 0-10m Range
BH93420-I IP68 Water Level Transmitter 4-20mA Output 0-10m Range BH93420-I IP68 Water Level Transmitter 4-20mA Output 0-10m Range
기본 정보
인증: CE, RoHS, ISO9001
최소 주문 수량: 1
가격: 50
최고의 가격 지금 연락
상세 정보
모델 번호: BH93420-I 출력 신호: 4-20 Ma 또는 RS485
IP 등급: IP68 순 중량: 0.3kg
다이어프램 재료: 316L 스테인리스 스틸 정확성: 0.5%F.S
측정 범위: 0-10kpa ~ 200m 작동 온도: -20~80oC
저장 온도: -30 ~ 100ºC 주택 자료: 1Cr18Ni9Ti
절연 저항: > = 100mΩ@100vdc 방폭 등급: ExiaIICT6
보호 등급: IP67, IP68 O-링 씰: 플루오로 고무
케이블 재료: 폴리에틸렌, 폴리 우레탄
강조하다:

IP68 water level transmitter 4-20mA

,

water level transmitter 0-10m range

,

4-20mA output water level sensor

제품 설명

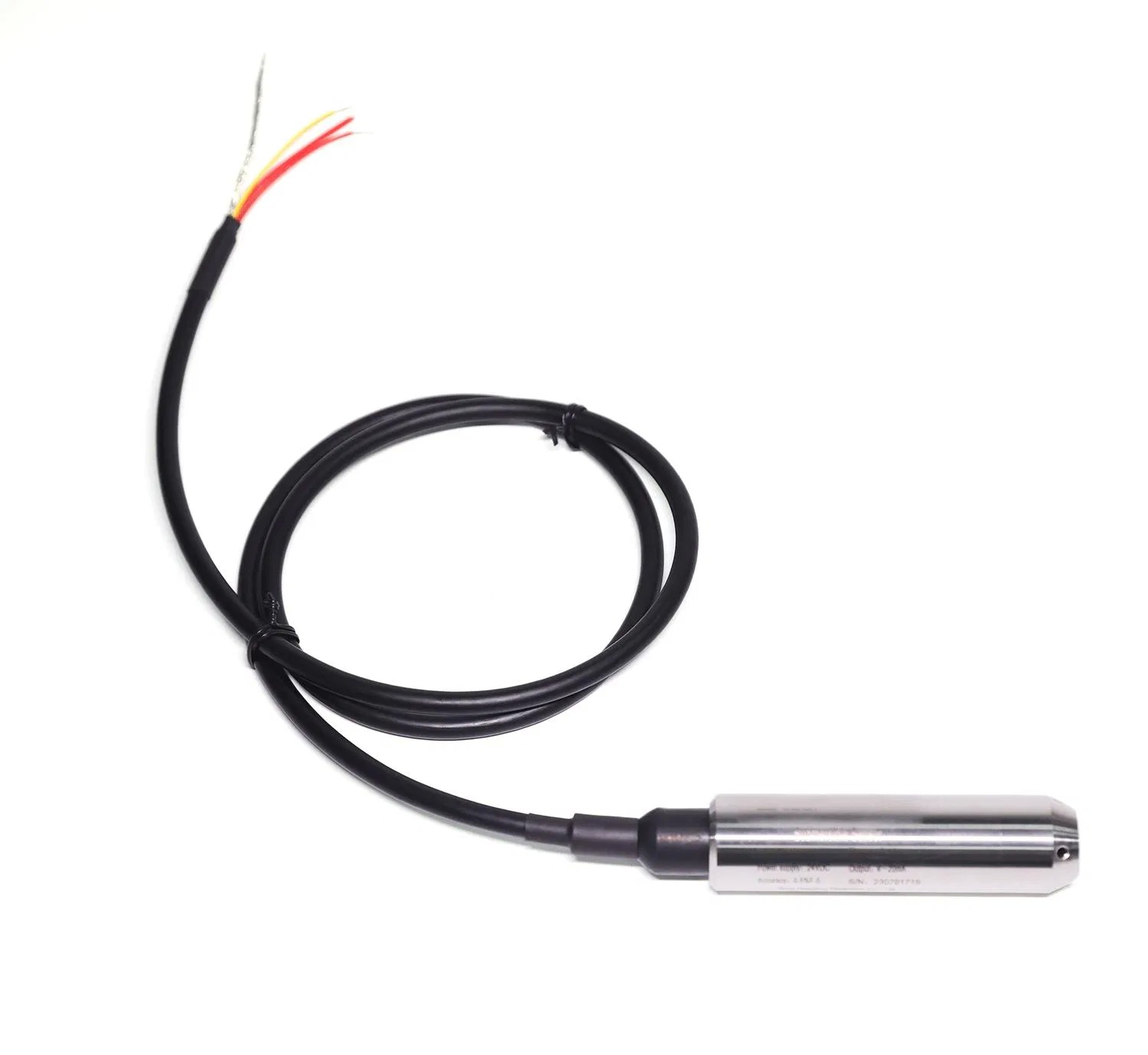

BH93420-I Submersible Liquid Level Transmitter
The BH93420-I is a submersible liquid level transmitter that uses HT series diffused silicon isolation oil-filled core as its signal measuring element. Designed with a full stainless steel housing and compact one-piece structure, it offers excellent waterproof performance. The product has undergone rigorous high and low-temperature compensation and aging tests, ensuring high reliability and stability.
Product Features
  • Full stainless steel housing, suitable for various testing environments
  • Immersion-type probe measurement for easy installation
  • Multiple output signal options available
  • Explosion-proof marking: ExiaIICT6
  • High protection rate: IP68
  • PE or PU cable options
Applications
  • Compatible with 316LSS and non-corrosive liquids
  • Monitoring water levels in sewage, industrial/municipal water, tanks, wells, rivers, seawater, and lakes
  • Measuring fuel levels in diesel and fuel tanks
Performance Parameters
Parameter Specification
Measurement Range 0~10m...400m
Overload ≤ 2 X of rated range
Accuracy @ 25ºC ±0.25% (Typ.) ±0.5% (Max.)
Repeatability ±0.03% (Typ.) ±0.05%FS (Max.)
Hysteresis ±0.03% (Typ.) ±0.05%FS (Max.)
Long-Term Stability ±0.2%F.S/year (Max.)
Zero Point Temperature Drift ±1.5%F.S(Typ.) ±2%F.S (Max.)
Full Scale Temperature Drift ±1.5%F.Sr(Typ.) ±2%F.S (Max.)
Compensation Temperature 0-50ºC (0-1m. 0-2m); 0-70ºC
Operating Temperature -20~80ºC
Storage Temperature -30~100ºC
Vibration 10g,55Hz ~ 2kHz
Housing Material 1Cr18Ni9Ti
Diaphragm Material 316L Stainless Steel
Insulation Resistance >=100MΩ@100VDC
Explosion-proof Rating ExiaIICT6
Protection Rating IP67, IP68
O-Ring Seal Fluoro rubber
Weight ~0.3Kg (without cable)
Cable Material Polyethylene, Polyurethane
Output Signal Options
Output Signal Supply Voltage Output Type
4~20mA 12~30VDC 2/3/4 wire
0~10/20mA 3 wire
0/1~5V 5VDC
0/1~10V
0.5~4.5V
RS485 Communication Protocol
BH93420-I IP68 Water Level Transmitter 4-20mA Output 0-10m Range 0 BH93420-I IP68 Water Level Transmitter 4-20mA Output 0-10m Range 1 BH93420-I IP68 Water Level Transmitter 4-20mA Output 0-10m Range 2
Ordering Information
Ordering Tips
  • Ensure the measured medium is compatible with product components
  • Specify the density of the measured medium
  • For strong electromagnetic or radio frequency interference, provide details
  • Install lightning protection devices and ensure proper grounding
Order Guide
Code Option
BH93420-I Pressure Transmitter
Measurement Range 0~10m...400m
Power Supply D1: 24VDC | D2: 5VDC | D3: Other
Output Signal S1: 4~20mADC | S2: 1~5VDC | S3: 0~5VDC | S4: 0~10mADC | S5: 0~20mADC | S6: 0~10VDC | S7: 0.5~4.5VDC | S8: RS485
Pressure Type G: Gauge Pressure | A: Absolute Pressure | S: Sealed Reference Pressure
Material 01: 304 Stainless Steel | 02: 316L Stainless Steel
Cable Material C1: PE | C2: PU
Frequently Asked Questions
What are the features of your pressure sensor transmitters?
High precision, durability, and excellent performance. Customization available.
Can I customize special specifications?
Yes, our engineers can tailor products to meet specific needs. We provide OEM and ODM services.
What is your production capacity?
Our manufacturing facilities can produce up to 30,000 pressure sensor transmitters per month. Contact our sales team in advance for large-scale orders.
What's the typical delivery period?
5~8 working days for standard models. Customized products may vary.
How are the products priced? Any discounts?
Competitive pricing with discounts for bulk orders or long-term partners.
What is the warranty and after-sales service?
24-month warranty after shipment. After-sales responds within 24 hours, with remote PC network support available.
BH93420-I IP68 Water Level Transmitter 4-20mA Output 0-10m Range 3 BH93420-I IP68 Water Level Transmitter 4-20mA Output 0-10m Range 4 BH93420-I IP68 Water Level Transmitter 4-20mA Output 0-10m Range 5
