| 원래 장소: | 중국 바오지 |
|---|---|
| 브랜드 이름: | HT sensor |
| 인증: | CE,RoHs,ISO9001 |
| 모델 번호: | BPHT241 |
| 최소 주문 수량: | 1 |
| 가격: | negotiable |
| 포장 세부 사항: | 표준 내보내기 패키지 |
| 배달 시간: | 40 근무일 |
| 지불 조건: | Western Union, L/C, T/T |
| 공급 능력: | 5000pcs/월 |
| 모델 번호.: | BPHT241 | 사용자 정의: | 사용자 정의 |
|---|---|---|---|
| 보호 등급: | IP65 | 무게: | ~0.3kg |
| 주택 자료: | 316L 또는 304SS | 압력 유형: | 측정 압력, 절대 압력, 밀폐 압력 |
| 운송 패키지: | 판지를 가진 표준 수출 패킹 | 사양: | 실리콘 압력 센서 |
| 기원: | 바오지, 중국 | HS 코드: | 9026201090 |
| 구조 유형: | 확산형 실리콘 압력 트랜스미터 | 측정 매체: | 공기와 액체 |
| 정확도 등급: | 0.5% | 압력 범위: | -100kpa ... 0kpa ~ 35kpa ... 20mpa |
| 실: | g1 |

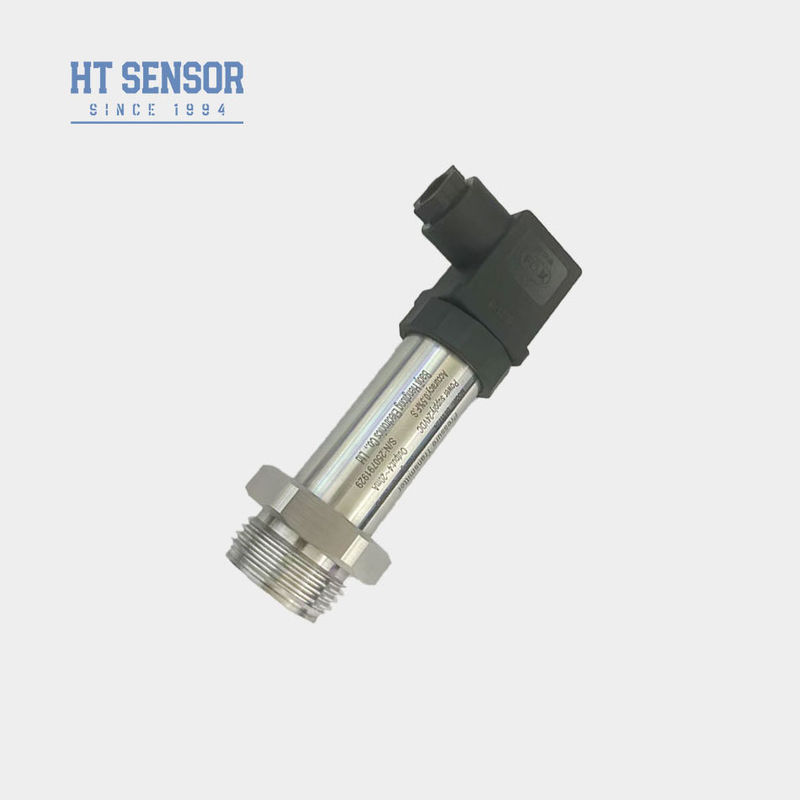

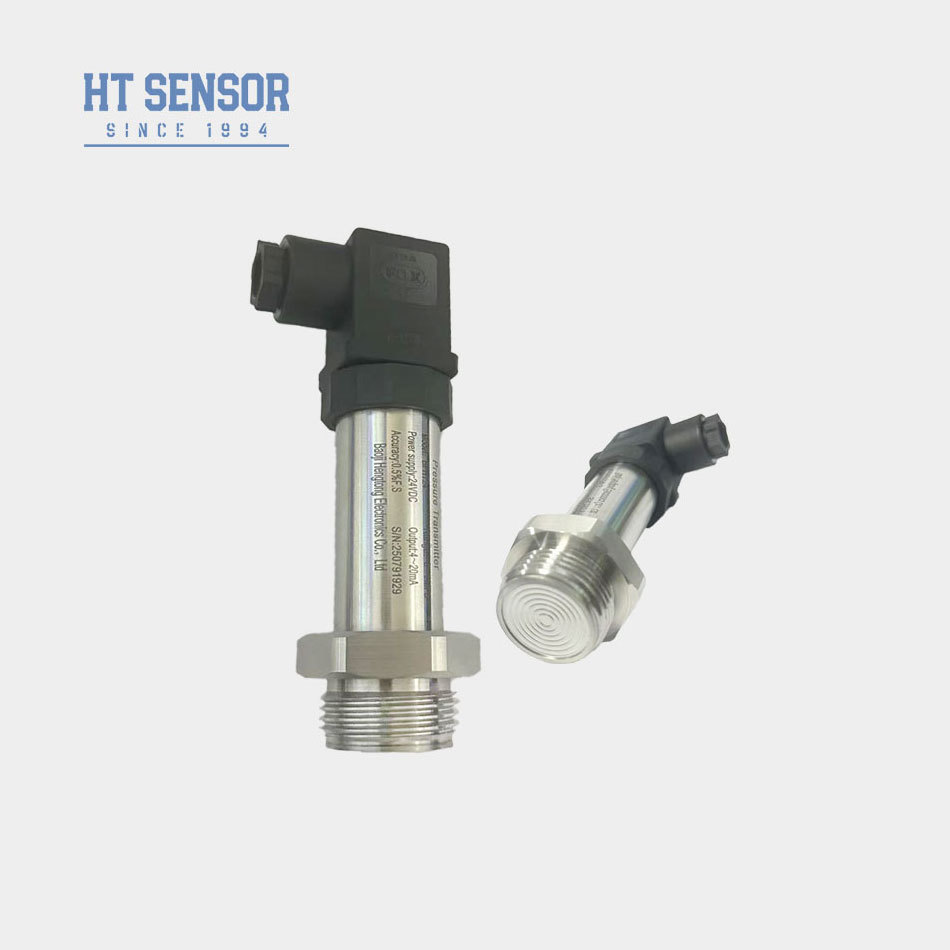

BPHT241 Flush Diaphragm Pressure Transmitter
Introduction:
BPHT241 flush diaphragm pressure transmitter utilizes the HT series big flush diaphragm silicon pressure-resistance isolation oil-filled core as the signal measuring element. The signal processing circuit is located inside a stainless steel housing, converting the sensor signal into a standard output signal. This pressure transmitter is primarily used in places where high sanitary conditions are required, ensuring reliable and accurate pressure measurements in hygienic environments.
Product Features:
1. G1 pressure interface
2. Designed for hygienic applications to prevent medium scaling
3. High accuracy with a fully stainless steel structure
4. Easy to clean.
Applications:
1. Suitable for measuring non-corrosive gases and liquids with 316L
2. Ideal for environmental protection and chemical industries
3. Used in the marine and aviation industries
4. Well-suited for use in the medical, biopharmaceutical, and food hygiene industries.
| Performance Parameters | |
| Measurement Range | 0~35Kpa…~20MPa |
| Pressure Type | Gauge Pressure, Absolute Pressure, Sealed Pressure |
| Overload | ≤ 1.5 times of the rated range |
| Accuracy @ 25ºC | ±0.25% (Typical) ±0.5% (Maximum) |
| Repeatability | 0.1%FS |
| Hysteresis | 0.1%FS |
| Long-Term Stability | ±0.1%F.S/Year(Typical) ±0.2%F.S/Year(Maximum) |
| Zero Point Temperature Drift | ±0.02%F.S/ºC(≤100KPa) ±0.01%F.S/ºC(>100KPa) |
| Full Scale Temperature Drift | ±0.02%F.S/ºC(≤100KPa) ±0.01%F.S/ºC(>100KPa) |
| Frequency Response | 2.4Khz |
| Compensation Temperature | -20-70ºC(≤10mpa,customizable) |
| Operating Temperature | -20ºC~80ºC |
| Storage Temperature | -40ºC~120ºC |
| Vibration | 10g,55Hz ~ 2kHz |
| Housing Material | 304,316L |
| Diaphragm Material | 316L |
| Insulation Resistance | 100MΩ 100VDC |
| Explosion-proof Rating | Ex db IIC T6 Gb |
| Protection Rating | IP65 |
| O-Ring Seal | Fluoro rubber |
| Weight | ~0.25kg |
| Output Signal | Supply Voltage | Output Type |
| 4~20mA | 12~30VDC | 2/3/4 wire |
| 0~10/20mA | 3 wire |
|
| 0/1~5V | ||
| 0/1~10V | ||
| 0.5~4.5V | 5VDC | |
| RS485 Communication Protocol | 3.6~30V / Battery | 4 wire |
| Selection Examples |
| Ordering tips |
1. When selecting the product, please ensure that the medium to be measured is compatible with the contact parts of the product.
2. When placing an order, please note that explosion-proof type products do not include digital display heads.
3. When ordering transmitters with an LCD or LED display head, the power supply for the transmitter should not be lower than 20VDC.
4. To ensure reliable operation of the product, it is recommended that users install lightning protection devices on-site and ensure that the product and power supply are reliably grounded.
5. The rated working temperature range of the Fluoro rubber O-ring is -20ºC to 250ºC. When the product's operating temperature is below -20ºC, it is necessary to choose an EPDM O-ring seal.
6. The default cable length is 1.5m, available in three materials. If not specified, it will be supplied with polyethylene cable material. If you require a different cable material, please specify it in the order.
7. For special requirements such as strong vibration, instantaneous impact force, strong electromagnetic or radio frequency interference, please inform our company and specify them in the order.
