| 인증: | CE, RoHS, ISO9001 |
|---|---|
| 최소 주문 수량: | 1 |
| 가격: | 200 |
| 모델 번호: | BH-WS | 압력 범위: | 게이지 압력, 절대 압력 |
|---|---|---|---|
| 정확도 등급: | 0.2%,00.5% | IP 등급: | IP68 |
| 순 중량: | 2.1kg | 다이어프램 재료: | 316L 스테인리스 스틸 |
| 주택 자료: | 316L 스테인리스 스틸 | 안정: | ±0.1%FS/년(통상) |
| 측정 범위: | 0 ~ 10m… 400m | 초과 적재: | ≤ 2x 등급 범위 |
| 정확도 @ 25ºC: | ± 0.25% (타이핑) ± 0.5% (Max.) | 작동 온도: | -20~100oC |
| 저장 온도: | -30 ~ 100ºC | 방폭 등급: | ExiaIICT6 |
| 출력 신호: | 4 ~ 20MA, 0 ~ 10/20MA, 0/1 ~ 5V, 0/1 ~ 10V, 0.5 ~ 4.5V | ||
| 강조하다: | sewage level sensor IP68,316L stainless steel water level transmitter,high accuracy sewage level sensor |
||

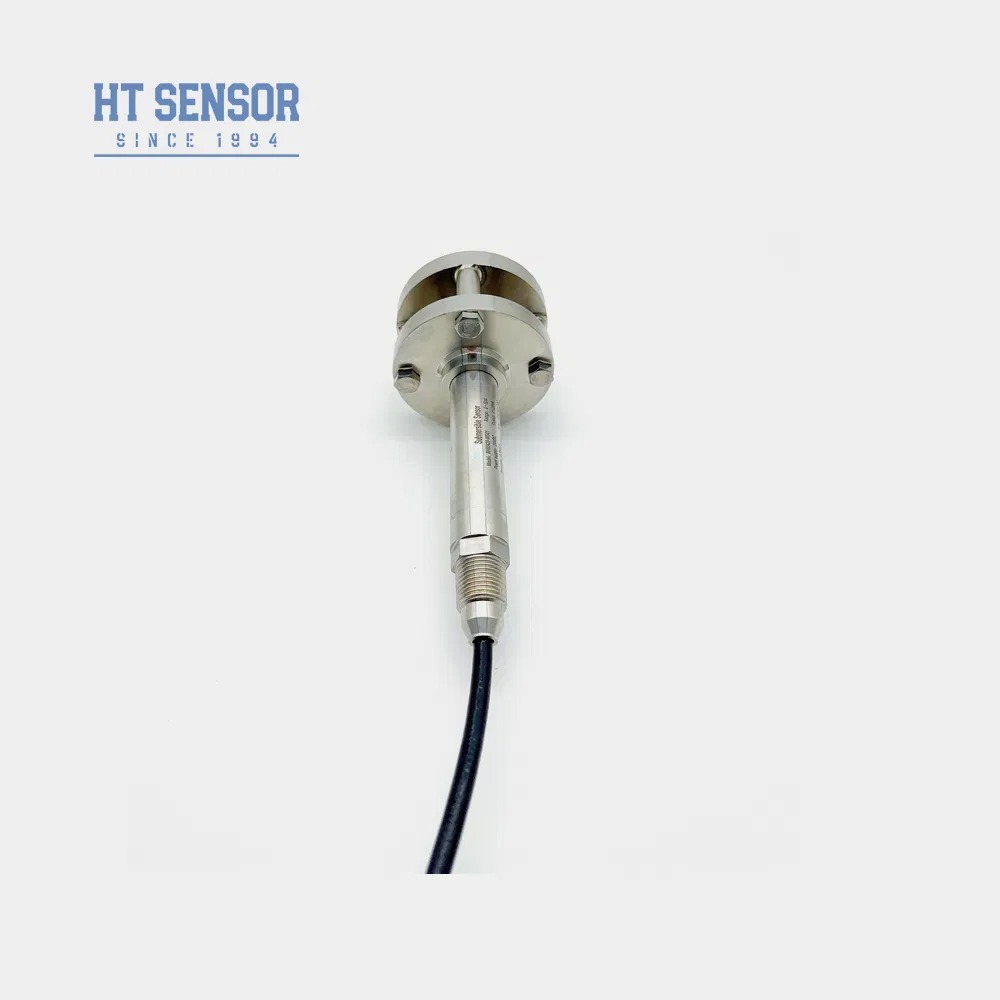

BH93420-WS Sewage Level Sensor utilizes a high-precision piezoresistive silicon pressure sensor as the sensitive measuring element. It features a robust and durable design with full 316L stainless steel construction.
This transmitter is suitable for measuring liquid levels in environments with contaminated liquids, including:
| Measurement Range | 0~10m…400m |
|---|---|
| Pressure Type | Gauge Pressure, Absolute Pressure, Sealed Pressure |
| Overload | ≤ 2X rated range |
| Accuracy @ 25ºC | ±0.25% (Typ.) ±0.5% (Max.) |
| Repeatability | ±0.03% (Typ.) ±0.05%FS (Max.) |
| Hysteresis | ±0.03% (Typ.) ±0.05%FS (Max.) |
| Long-Term Stability | ±0.2%F.S/year (Max.) |
| Zero Temperature Drift | ±0.01%FS/ºC(>100KPa), ±0.02%FS/ºC (≤100Kpa) |
| Span Temperature Drift | ±0.01%FS/ºC(>100KPa), ±0.02%FS/ºC (≤100Kpa) |
| Compensation Temperature | -10-80ºC |
| Operating Temperature | -20~100ºC |
| Storage Temperature | -30~100ºC |
| Vibration | 10g,55Hz ~ 2kHz |
| Housing Material | 316L Stainless Steel |
| Diaphragm Material | 316L Stainless Steel |
| Insulation Resistance | >=100MΩ@100VDC |
| Explosion-proof Rating | ExiaIICT6 |
| Protection Rating | IP67, IP68 |
| O-Ring Seal | Fluoro rubber |
| Weight | ~2.1Kg (without cable) |
| Cable Material | Polyethylene, Polyurethane, PTFE |
| Supply Voltage | Output Type |
|---|---|
| 12~30VDC | 4~20mA (2/3/4 wire) |
| 5VDC | 0~10/20mA (3 wire), 0/1~5V, 0/1~10V, 0.5~4.5V |
| Code | Option |
|---|---|
| WS | Pressure Transmitter |
| D1 | 24VDC Power Supply |
| D2 | 5VDC Power Supply |
| S1 | 4~20mADC Output |
| S2 | 1~5VDC Output |
| G | Gauge Pressure |
| C1 | PE Cable Material |
