| 인증: | CE,RoHS,ISO9001 |
|---|---|
| 최소 주문 수량: | 1 |
| 가격: | 60 |
| 압력 범위: | 0-4m | 디스플레이 유형: | 주도의 |
|---|---|---|---|
| 정확도 등급: | 00.25%,00.5% | IP 등급: | IP68 |
| 순 중량: | 0.6kg | 다이어프램 재료: | 316L 스테인리스 스틸 |
| 안정: | ±0.1%FS/년(통상) | 배상 임시.: | -10 ~ 70ºC |
| 측정 범위: | 0 ~ 10m… 4m | 초과 적재: | ≤ 2 x 등급 범위 |
| 반복성: | ± 0.03% (타이핑) ± 0.05% FS (Max.) | 작동 온도: | -20~80oC |
| 저장 온도: | -30 ~ 100ºC | 주택 자료: | 스테인레스 스틸 1Cr18Ni9Ti |
| 방폭 등급: | ExiaIICT6 | ||
| 강조하다: | HT BH93420IIK water level transmitter,IP68 stainless steel water level sensor,0-4m range water level transmitter |
||

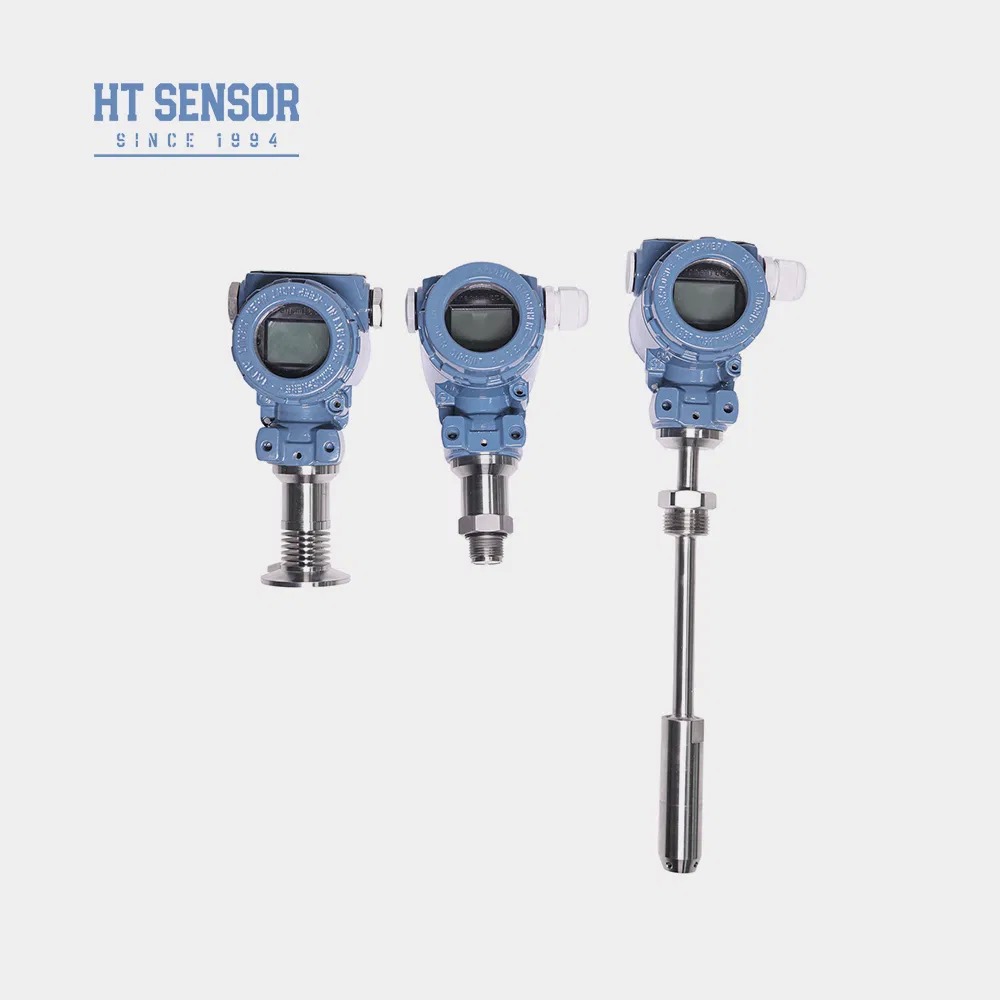

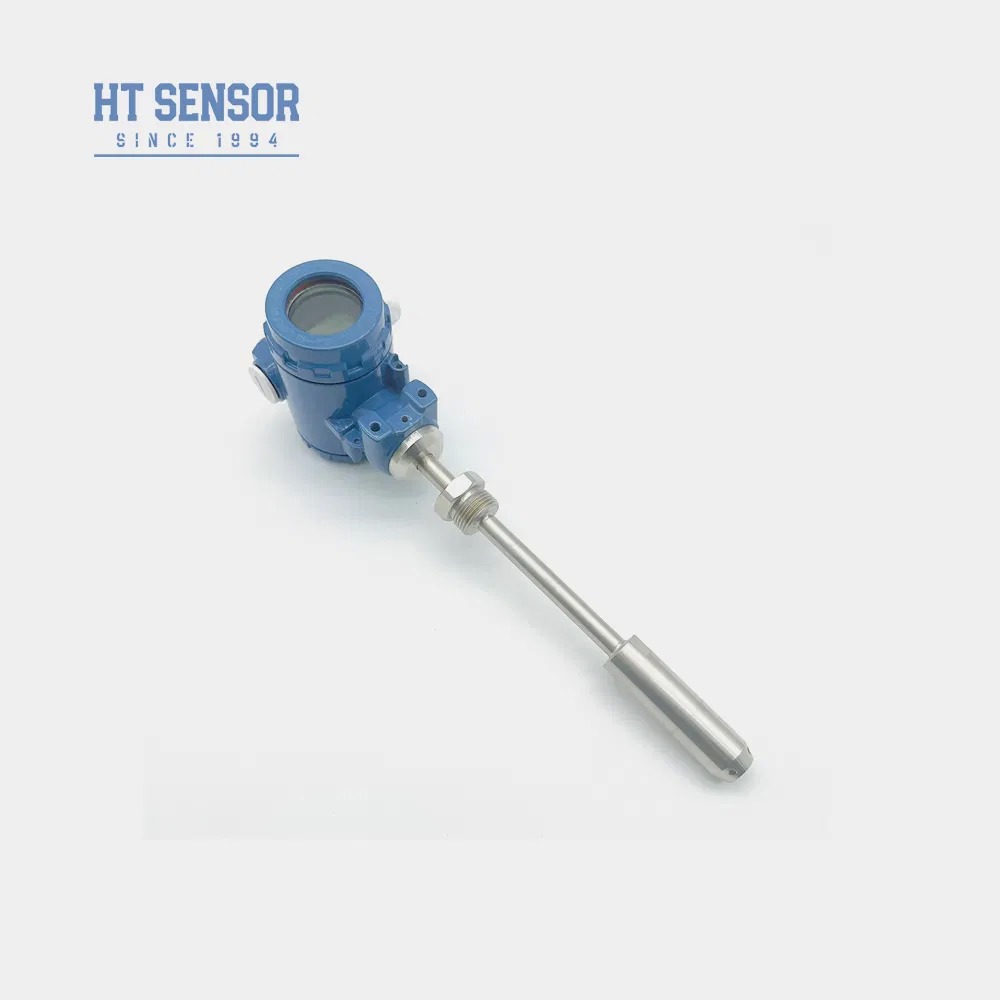

The BH93420-IIK/IIIK armored insertion water level transmitter utilizes a highly accurate piezoresistive diffused silicon pressure sensor for precise liquid level measurement in open containers, including corrosive media. Its durable construction features a high-strength stainless steel tube and measuring probe with standard flange installation, ensuring reliability in challenging environments.
| Parameter | Specification |
|---|---|
| Measurement Range | 0~10m…4m |
| Pressure Type | Gauge Pressure, Absolute Pressure, Sealed Pressure |
| Overload | ≤ 2 X rated range |
| Accuracy @ 25ºC | ±0.25% (Typ.) ±0.5% (Max.) |
| Long-Term Stability | ±0.15%F.S/year (Max.) |
| Operating Temperature | -20~80ºC |
| Housing Material | Stainless steel 1Cr18Ni9Ti |
| Explosion-proof Rating | ExiaIICT6 |
| Protection Rating | IP68 |
| Output Signal | Supply Voltage | Output Type |
|---|---|---|
| 4~20mA | 15~30VDC | 2/3/4 wire |
| 0~10/20mA | 3 wire | |
| RS485 Communication Protocol | 4 wire |
| Component | Code | Option |
|---|---|---|
| Base Model | BH93420 | Armored water level transmitter |
| Measurement Range | 0~10m…4m | |
| Power Supply | D1 | 24VDC |
| Output Signal | S1 | 4~20mADC |
| Flange/Interface Size | F1-F4, M1-M3 | Various stainless steel options |
